- Stock: In Stock
- Tacho Hellas CODE: 81020822
- Manufacturer CODE: 2910002298300
- Dimensions: 20.00 x 15.00 x 7.00
- Weight: 0.70

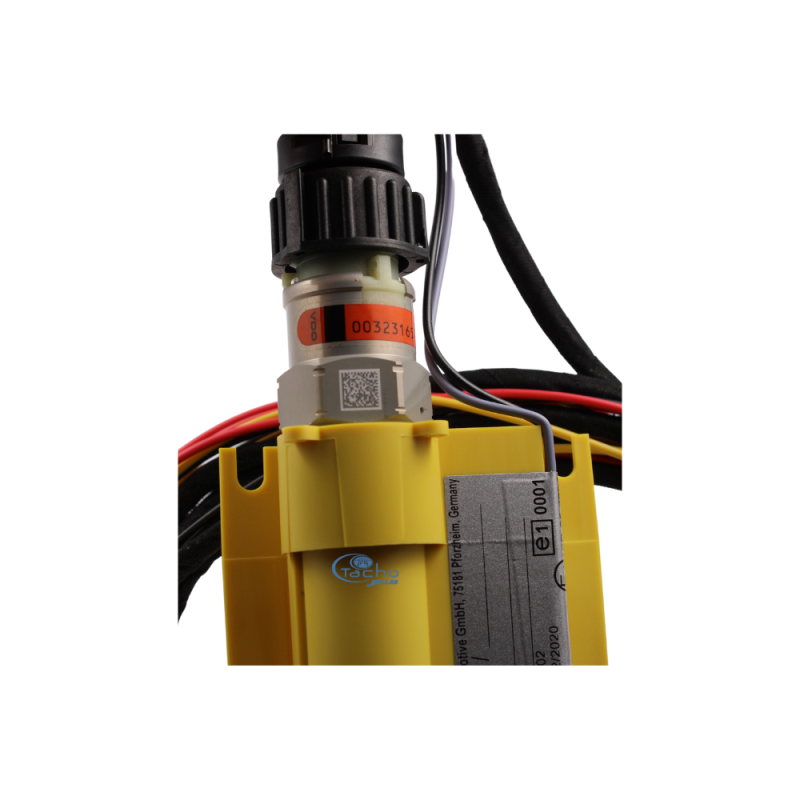

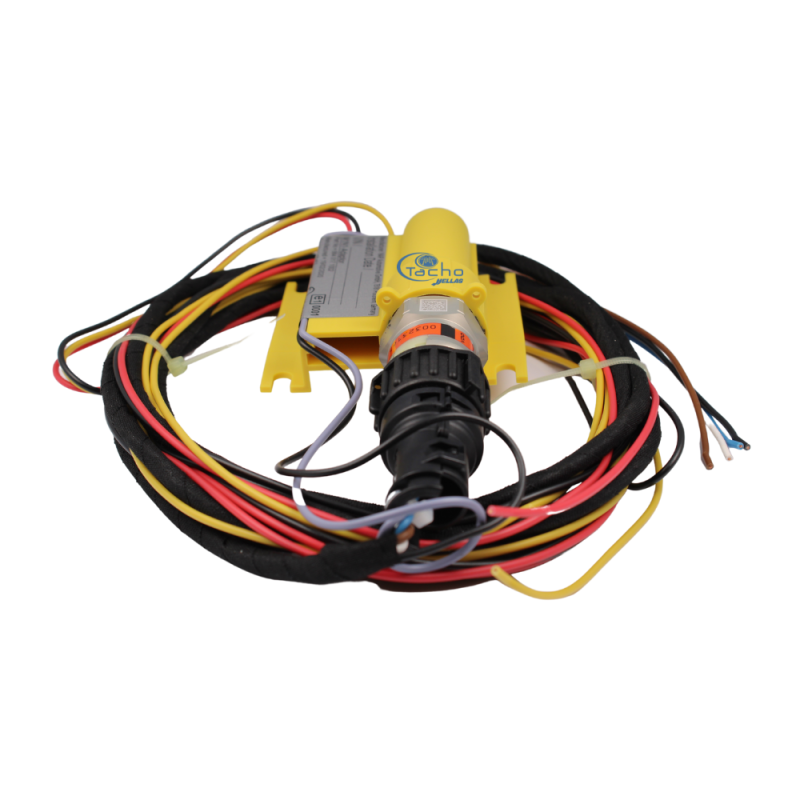

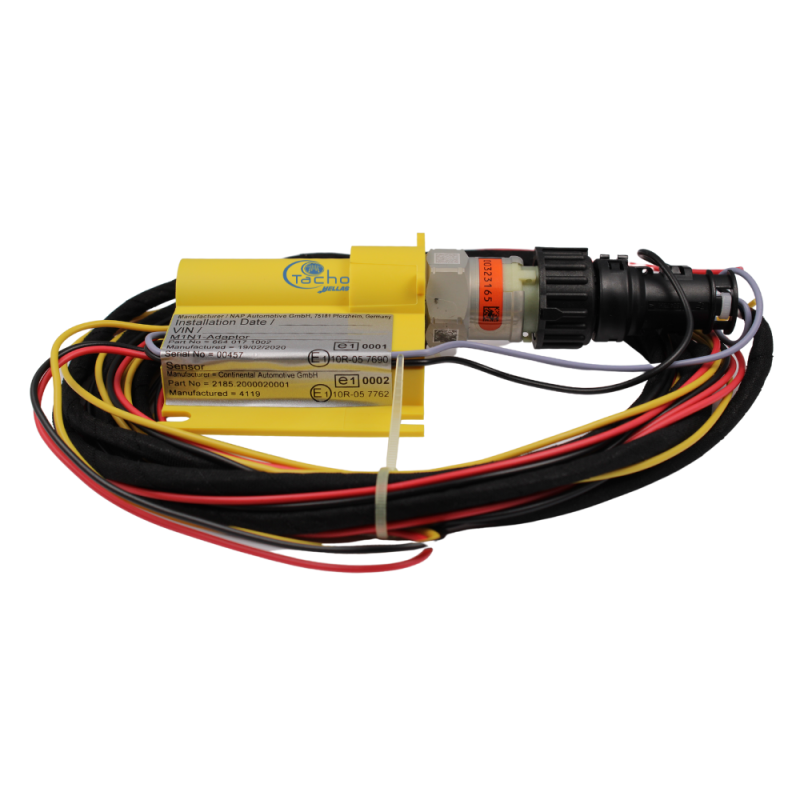

M1/N1 Adapter for the Smart Tachographs
The M1/N1 VDO adapter with KITAS4 2185.
Suitable for 12V vehicles.
Notes on the use of the adapter:
• The traceability of the KITAS sensor must be guaranteed, record the serial number of the KITAS sensor
• As part of the tachograph test, the serial number of the embedded motion sensor (KITAS) must be checked and documented on the installation label (the serial number of the adapter does not need to be recorded).
• If it is necessary to replace the vehicle unit in case of a defect, the complete adapter must also be replaced.
• In connection with the Intelligent Tachograph, the KITAS sensor must be sealed with the adapter housing using a seal according to he specifications of Appendix 1C.
• This seal must be checked and replaced as part of the regular inspection, regardless of the condition of the seal. The sealing regulations according to Annex 1C apply.
